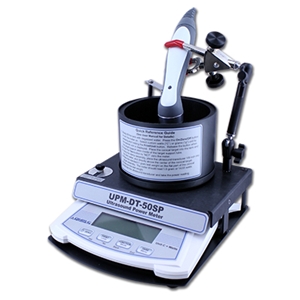

UPM-DT-50SP超声功率计,50 mW分辨率

UPM-DT-50SP超声功率计,50 mW分辨率

型号:UPM-DT-50SP 类别: 质控仪器 品牌:美国Ohmic pdf资料: UPM-DT-50SP超声功率计,50 mW分辨率.pdf
采购热线:0755-28917660  15813841944 在线咨询产品    UPM-DT-50SP超声功率计,50 mW分辨率在线咨询QQ:274798107

美国Ohmic UPM-DT-50SP超声功率计,50 mW分辨率
测量超声功率的最可靠和可重复的手段是通过辐射力法。要测试的传感器位于45°空气锥形目标上方的脱气水中。该联轴器是用精度达到±0.15瓦的精密天平。当声能施加到锥体时,合力与总辐射功率成正比。测试箱内衬声波吸收橡胶以防止声反射。天平被编程为将毫克量级的力直接转换为具有良好分辨率的以瓦特为单位的读数。功率计的测量精度可以通过在锥体的支撑臂上放置校准的重量来验证。

UPM-DT-50SP超声功率计的特点:
• 分辨率:50mW(150 mW,以克模式)
• 测量范围:0至30瓦
• 频率范围:.5至10mHZ
• 测量脉冲或连续功率
• 可选读数,单位为瓦或克
• 电池或线路供电
• 数字液晶显示
• 可选的RS-232或USB接口
• 自动调零和稳定
• 五点认证(NIST可追踪)


UPM-DT-50SP超声功率计电源信息

BC20-21113

除UPM-DT-50SP Rev B和UPM-100SP Rev B以外的所有芬欧汇川电源(通用),用于欧洲,英国,澳大利亚,美国
BC20-21119

UPM-DT-50SP Rev B和UPM-100SP Rev B的电源(通用),带欧洲,英国,澳大利亚,美国的插头

UPM-DT-50SP超声功率计标配包括以下附件:
保利案例 - 灰色
通用电源
1克重
校准NIST溯源校准证书
用户手册

UPM-DT-50SP超声功率计

The most reliable and repeatable means of measuring ultrasound power is by the radiation force method. The transducer to be tested is centered above a 45° air-backed cone target in de-gassed water. The coupling is made to a precision balance capable of resolving ± 0.15 watts. When acoustic energy is applied to the cone, the resultant force is directly proportional to the total radiated power. The test tank is lined with sonic absorbent rubber to prevent acoustic reflection. The balance is programmed to convert milligram magnitude forces direct to a readout in watts with good resolution. Measurement accuracy of the power meter can be verified by placing a calibrated weight on the cone’s support arm.

Features for the USP50SP:
• Resolution: 50mW (150 mW in grams mode)
• Measurement range: 0 to 30 Watts
• Frequency range: .5 to 10mHZ
• Measures pulsed or continuous power
• Selectable readout in watts or grams
• Battery or line-powered
• Digital liquid crystal display
• Optional RS-232 or USB interface
• Automatic zeroing & stabilization
• Five point certification (NIST traceable)


Power Supply Information

BC20-21113

Power supply (Universal) for all UPM's except UPM-DT-50SP Rev B and UPM-100SP Rev B w/plugs for EUR, UK, AUS, USA
BC20-21119

Power supply (Universal) for UPM-DT-50SP Rev B and UPM-100SP Rev B w/plugs for EUR, UK, AUS, USA
